11 March 2007, 21:09 by mark hoekstra

the iPod mini remastered, now with 16GB!

completely remastered, the DIY way…
click to enlarge

Even though I didn’t plan on multiple episodes of this project up front, it’s the way it went. So after:

part one:
how to turn your iPod mini into a flash based iPod

part two:
flash based iPod, now up to 8GB!


battery life on the flash based iPod minis

...and don’t forget to visit my other project:
put flash memory into (almost) ANY iPod! ^_^

...we’re now at part three. Only a couple of days ago I thought I wouldn’t be able to get hold of a 16GB Compact Flash card, simply because the price isn’t right yet for a project like this. At this time these cards trade for $250 and up while a non-flash 30GB iPod 5G (video) costs $249.00… So, I somehow decided when I did part two that 8GB should be it for now.

But… the nice people of PEAK hardware decided I could lend a 16GB-card for testing! After part one, which got blogged all over the place, we got in touch and they seemed to be very pleased with my choice of Compact Flash cards *^_^*

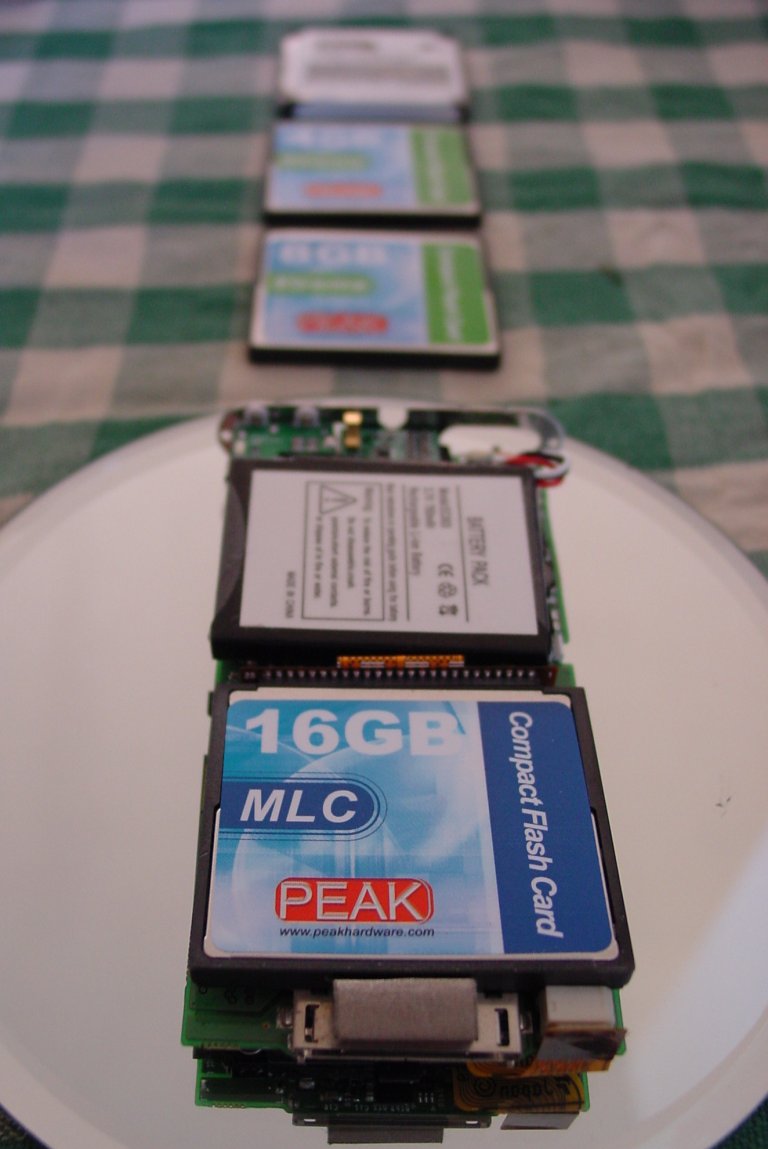

from top to bottom, 4GB microdrive, 4GB CF, 8GB CF and 16GB CF on an iPod mini
click to enlarge

Well, what can I say, it’s been a coincedence I started trying these cards, but they simply work. Over here in Holland, where I live, they are even cheaper (or less expensive) than the more regular brand-cards like Sandisk and the like, but like I said, they simply work and from what I understand from the comments on this site and also from all the forumthreads now dedicated to this modification, that’s not something that can be said of all the cards out there. You can find Trade Distributors of PEAK over here, but I guess they could use a reseller in the US and Canada… *^_^*

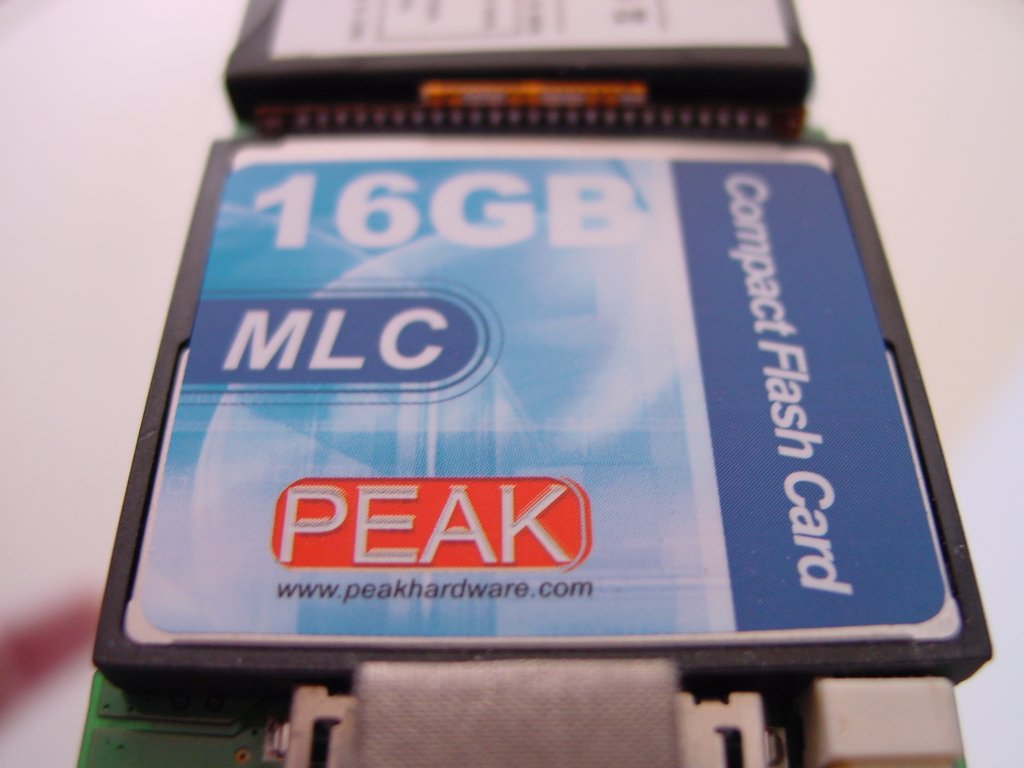

the 16GB Compact Flash card made by PEAK
click to enlarge

deciding on a look…

Now with this marvelous 16GB-card all of a sudden on my kitchen table, I also wanted to somehow end this mod for now and have my useful little MP3-player back. The reason I kept it disassembled for a long time was because I needed to make up my mind what I wanted to do to this iPod… Well, even though original plans were way more radical than this, I decided I would just paint it matte black for now. So I started out by using some sandpaper (I used waterproof sandpaper with a grain of 280) and I must say I really like the look actually.

And about getting this card to work? That’s exactly the same as in the original article, nothing more. Like I said before, I still can’t think of a reason why this wouldn’t work up to 128GB Compact Flash cards.

click to enlarge

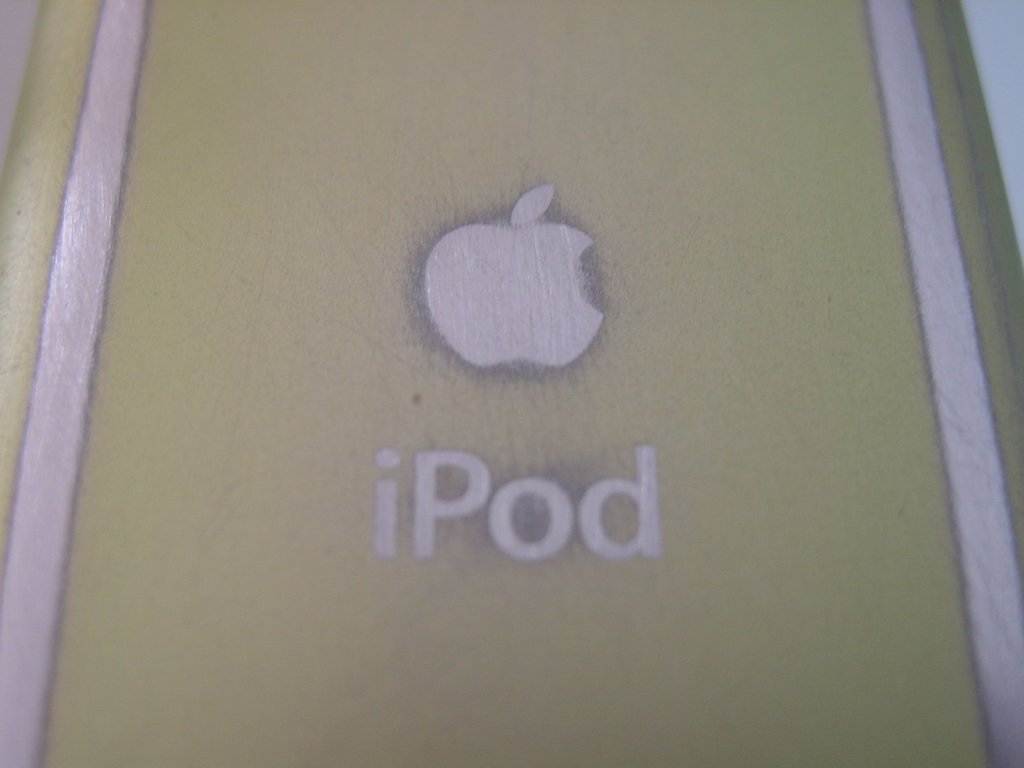

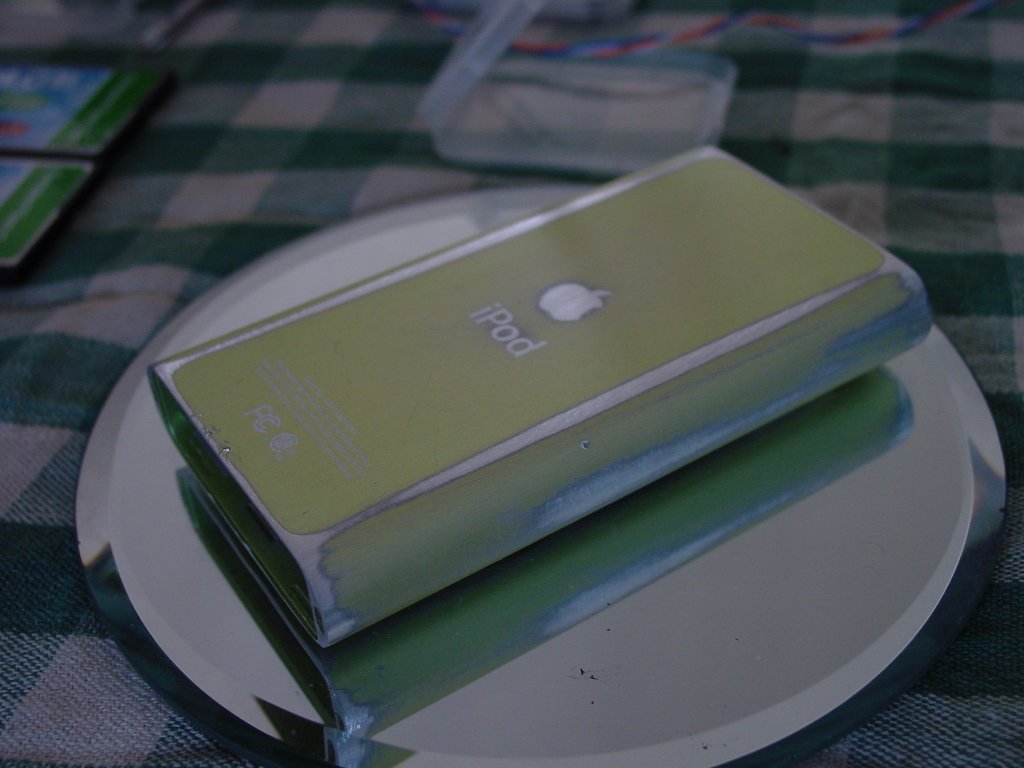

So even though I like the look, I still decided I would paint it black first. (FYI, there never was a black mini)

click to enlarge

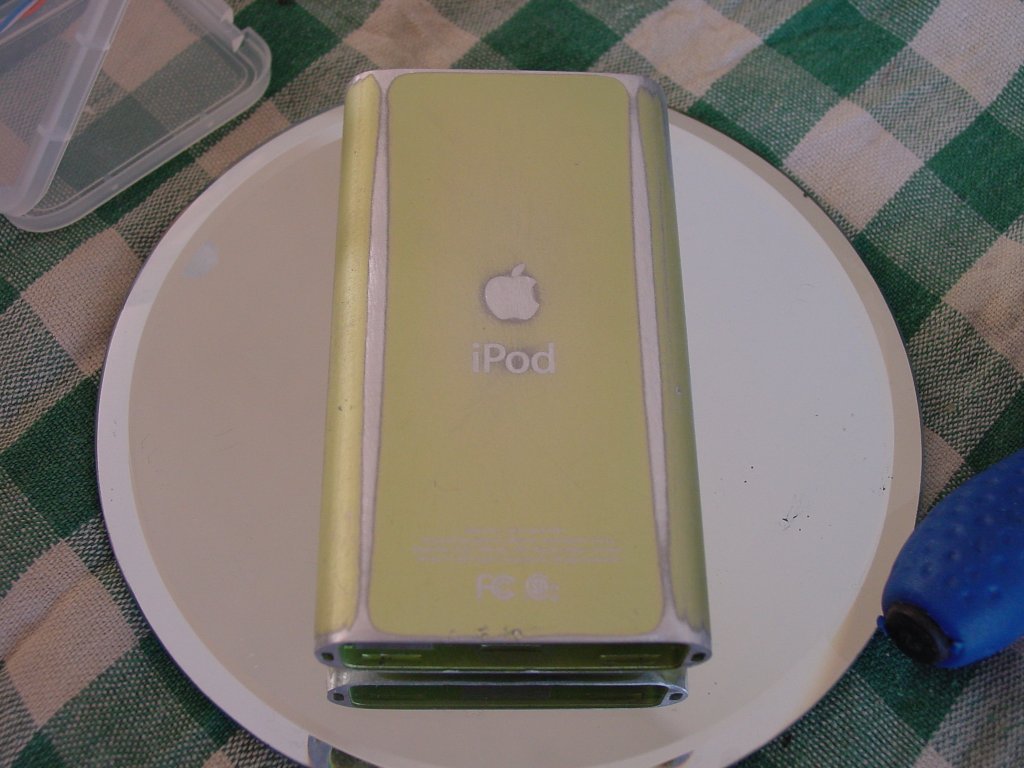

To get it right I needed several layers of paint, in between the painting I used sandpaper and I kept doubting if I would leave it like this… Cause really, I don’t dislike these looks, only thing is that the look isn’t natural. It’s like bleached jeans instead of jeans which grew old naturally. This isn’t something I came up with today or such, I have been looking at all sorts of styles and the style I’m trying to get resembles most of what is called a rat look. If you don’t know what a rat look is, have a look at this (imho) awesome VW-van and you know what I’m talking about. My plan was to use my mini as an experiment in that and when I decide on what I want, move on to my powerbook… So people who really like their Apples spotless maybe should start to remove my site from their bookmarks, cause you’re gonna spill your latte all over the place once I’m finished with my powerbook. *^_^*

When you however like this look (just like me), take a look at the Rat Bike entry on wikipedia. There’s some useful info there. Although, my idea has been influenced by the Mad Max films, the bikes influenced by those films are called survival bikes instead of rat bikes… Well, I already called my iPod mini ‘ratpod’ instead of ‘survivalpod’ and I somehow still don’t get the difference between the two… (and yes, my powerbook already is called ‘ratbook’ since the day I own it…). Or should I call it Mad Mini instead?

But… like I said, the look has to grow on there naturally, so I painted it some sort of spotless… and now I truly hope it grows old in my pocket :D

And now you know why my bike (as in bicycle) looks (and truly is) old & rusty like it is, cause that’s how I like it.

click to enlarge

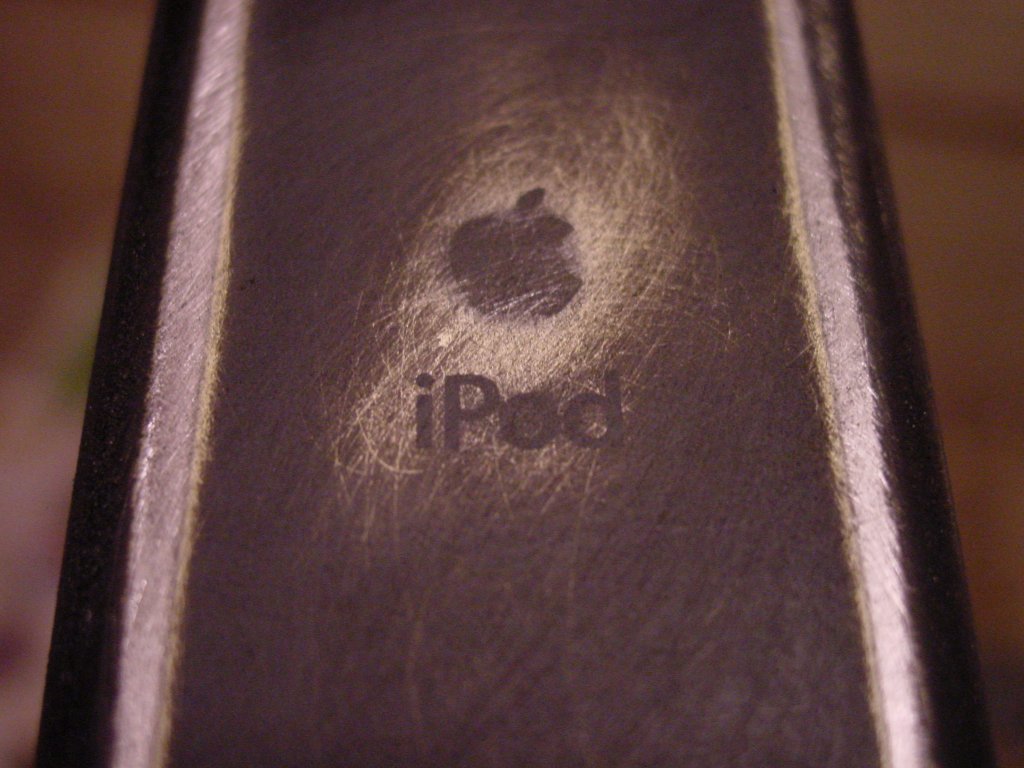

My iPod mini casing after several paintjobs…

click to enlarge

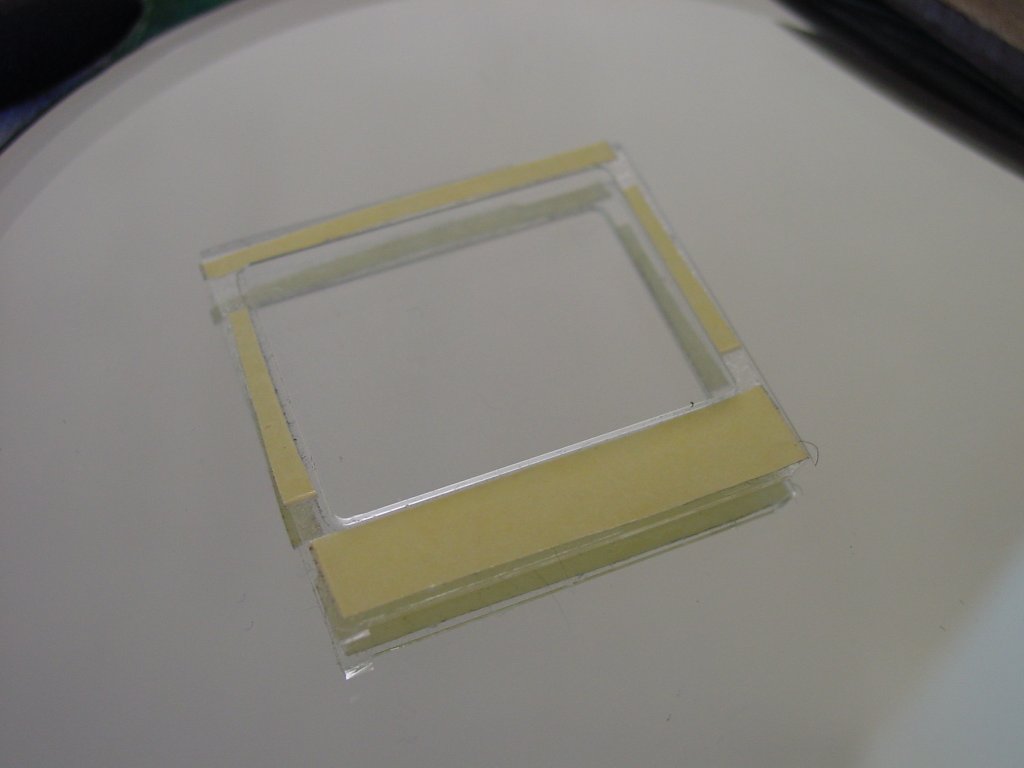

The ‘glass’ of the display. To reattach it to the casing, I used double sided tape. Next to duct tape, double sided tape is a must have…

click to enlarge

After reattaching the ‘glass’ to the casing, it really started to shine! *^_^*

click to enlarge

To prevent the Compact Flash card from having too much room(!) inside the casing, I attached a slightly cut business card on top of the card. That should do the trick.

By the way, fixing iPods with business cards seems to be all the craze nowadays ^_^

click to enlarge

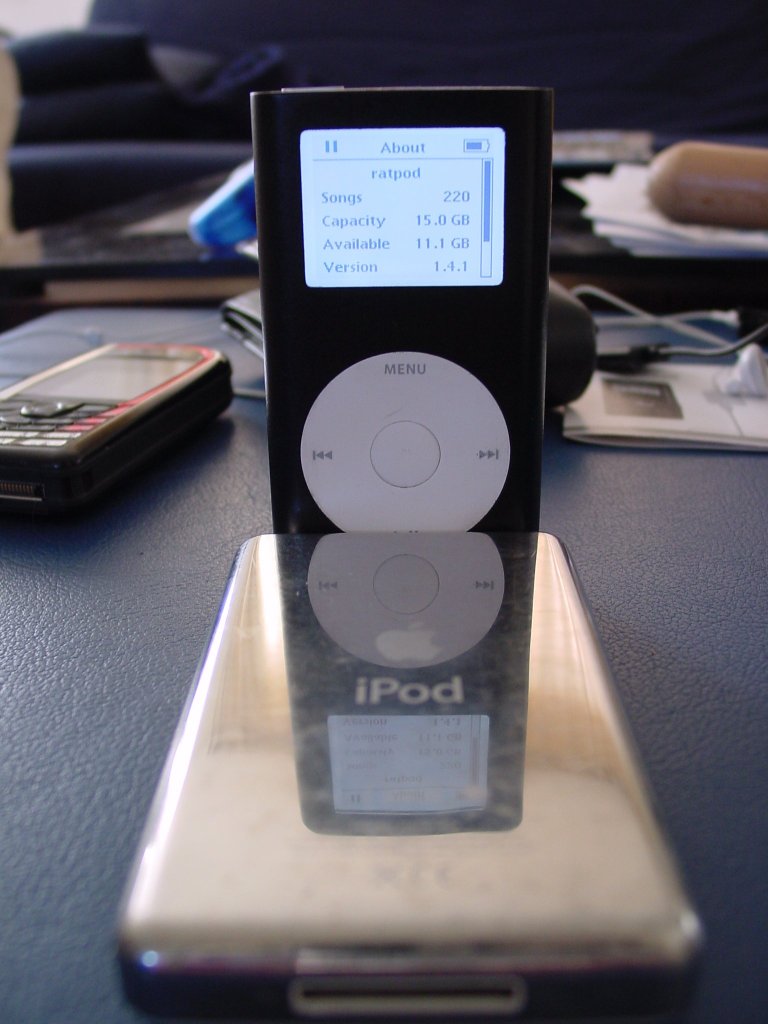

And here you have a 4G (hard drive based) 20GB iPod next to our souped up mini. The difference isn’t that big in capacity while the difference is quite big in size.

maximizing in more ways than one…

click to enlarge

This week I also got my hands on this iPod accessory. I’ve been looking to maximize the use of my iPod mini, but I wouldn’t/couldn’t have guessed it would become this usable (again)...

It’s a GEAR4 BluEye and I guess it’s a very nice add-on for my mini. This accessory does work with minis, nanos, 5G iPods and of the 4G iPods, it only works with the 4G Photo. So it does work fine with my little (now black) mini but not with the 4G iPod (except the Photo)...

Any way, imho it’s a truly nice add-on. It’s got FM-radio and it’s a bluetooth headset. Installation is pretty easy, FM-radio works right away and pairing the device is pretty straight forward too. One of the things I like about it, is that it’s styled as a normal remote for your iPod. But before this starts to sound like some kind of advertisment (which it’s not, I bought the accessory myself and I thought it complements this mini very well, that’s all), I suggest you take a look around the web for this accessory if you also like it.

I guess now is the time to go out for some after market black headphones as well…

If I can keep this pace up, I guess I’ve got more alternatives to the iPhone at the moment it’s available, than the Nano has colours!

click to enlarge

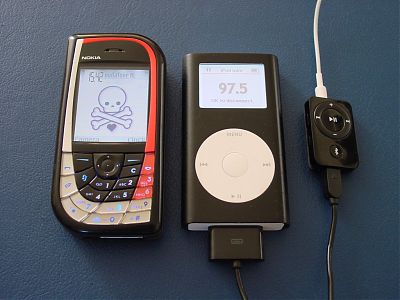

Ever saw an iPod pair with a mobile phone? Well, now you have…

click to enlarge

tschüss Nano…

It was only after a while that I realized that this DIY flash based iPod can be outfitted with a bigger capacity than they sell at the Apple store themselves! So even though this project, like many of mine, started out as a cheap alternative to something which is sold new, we now end up (for this time) with something of which you could say (it’s still arguable, I know) is better. Now at the time of writing, a 16GB Compact Flash is still very expensive which makes this mod hardly an economical one, but I’m pretty sure that will change pretty quick. For now, the motivation has been one which I use more often and that is: ‘Make something because it’s possible’ and in time, this mod will become a sane one too, in terms of money invested.

click to enlarge

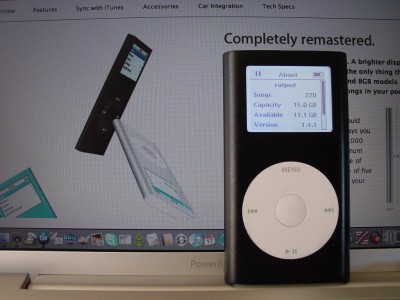

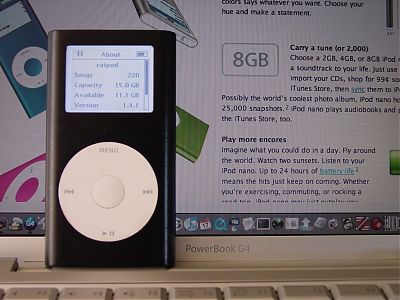

The ‘completely remastered’ iPod Nano remastered again, the DIY-way.

click to enlarge

carry a tune (or 2,000) from the Apple store or make that 4,000 when you decide to do it yourself…

click to enlarge

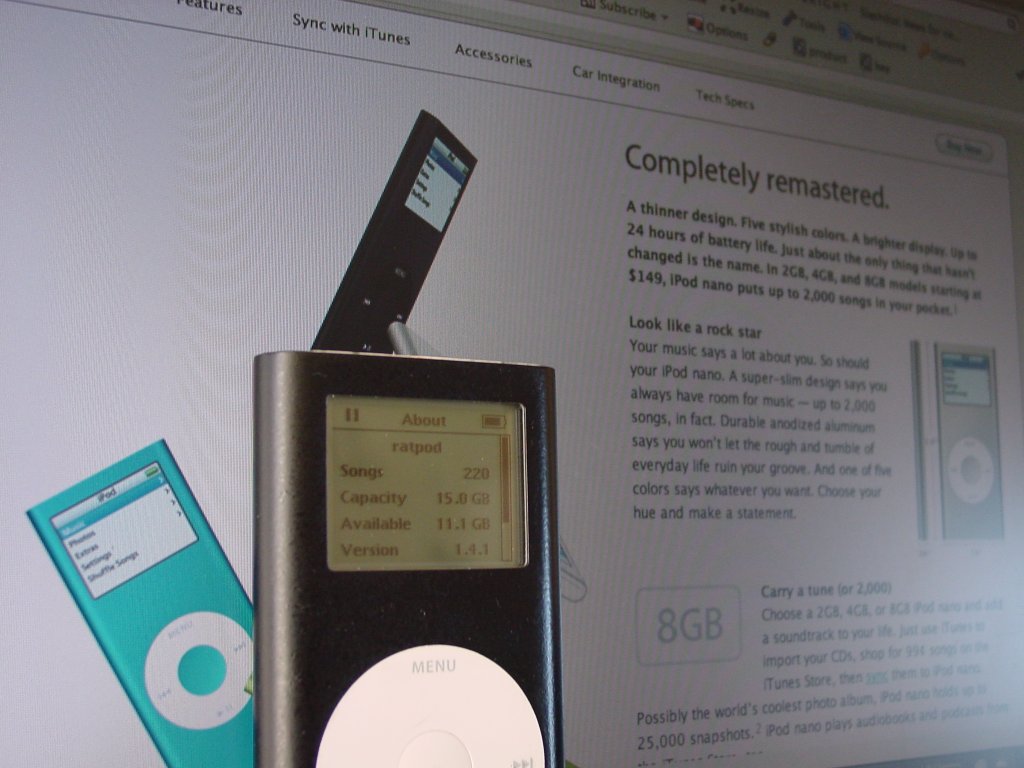

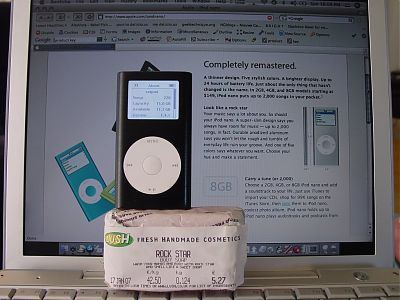

‘Look like a rock star’ it says on the Apple site. Well, if we want to look like Paris Hilton, I’m sure we don’t have to look any further than a pink 8GB Nano, but if you truly want a unique piece of hardware, I guess a 16GB DIY flash based iPod mini has a lot more rock star quality (make that, a rock star with taste) than anything stock from the Apple store. Cause really, how exclusive is anything from Apple nowadays with the spectacular sales figures they keep on showing? Next to the fact this mini is a flash based iPod, with twice the capacity Apple sells themselves, it also starts to smell like a rock star! Now I’m sure Apple will sell 16GB flash based iPods and up from the moment flash memory is priced right for that, but I hardly doubt they can beat the smell of this mini! *^_^*

If Apple starts selling smelly iPods (a feature Paris Hilton actually would like, I guess) from now on, don’t come complain to me!


I think I found what inspired me for the colour scheme… *^_^*

click to enlarge

P.S. This still isn’t the end of this project. It will take quite some time to get some reliable figures on battery life of this mod. I have been busy with that already, but I need to put a webcam on the mini to really get some figures you can trust… More on that later.
